Eliminate the need for guy-line systems,

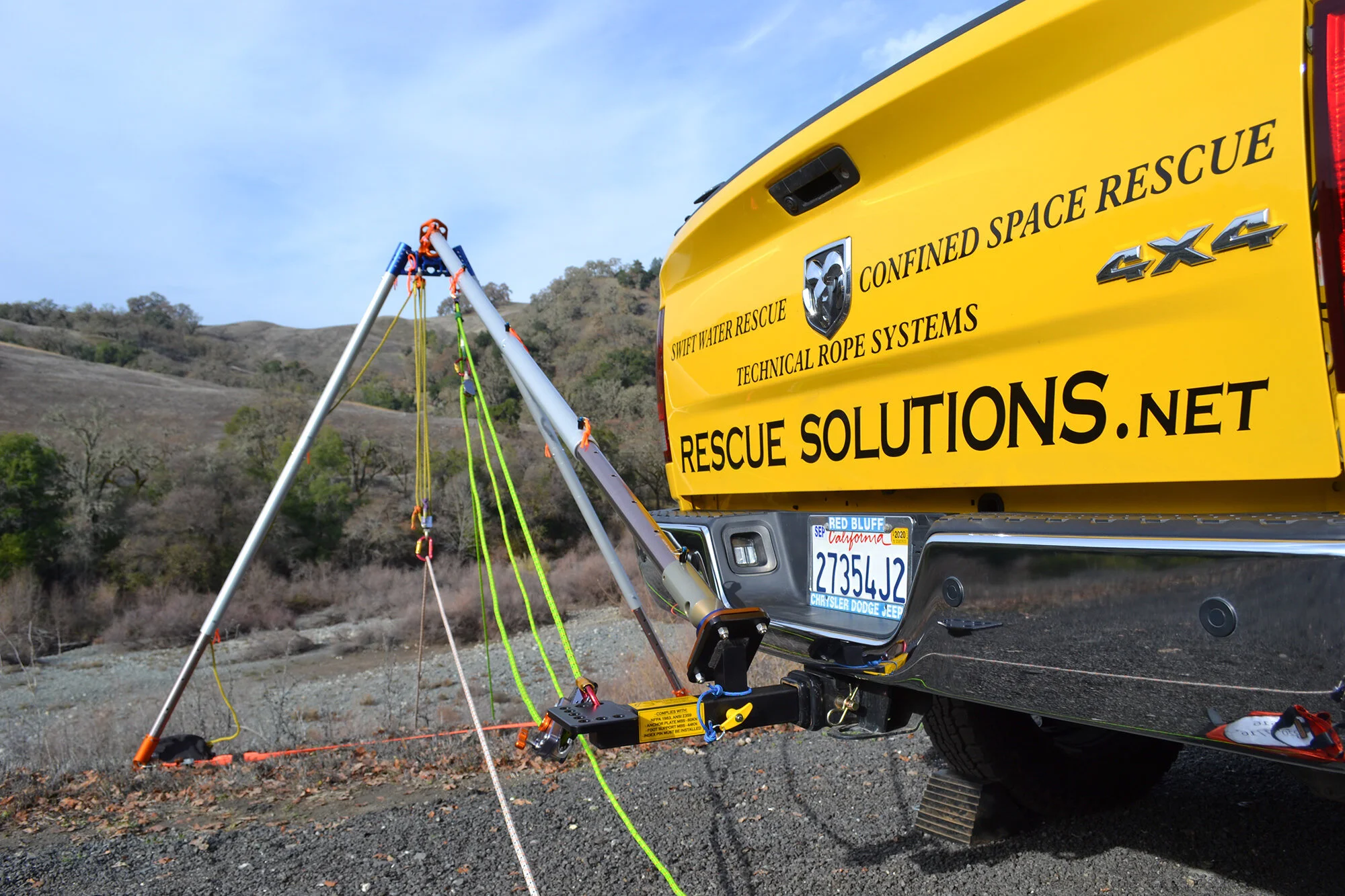

improvised foot anchors, lashing or structural bolting. The High Directional Hitch Support (HDHS) provides a portable, fixed anchor for the leg of the “Arizona Vortex” ® or “Terradaptor” ® multi-pod high directional.
High Directional Hitch Support (HDHS)
The HDHS provides quick stabilization of the multi-pod fore and aft through the apex of the A-frame giving rescue personnel a more rapid and safe rescue platform.
The High Directional Hitch Support is portable and readily adaptable to a variety of vehicles and receiver hitch locations. Compact, easy to store and transport, yet quick to access and install. It is a simple, quick, multi-directional solution providing an anchor point and a stable High Directional.

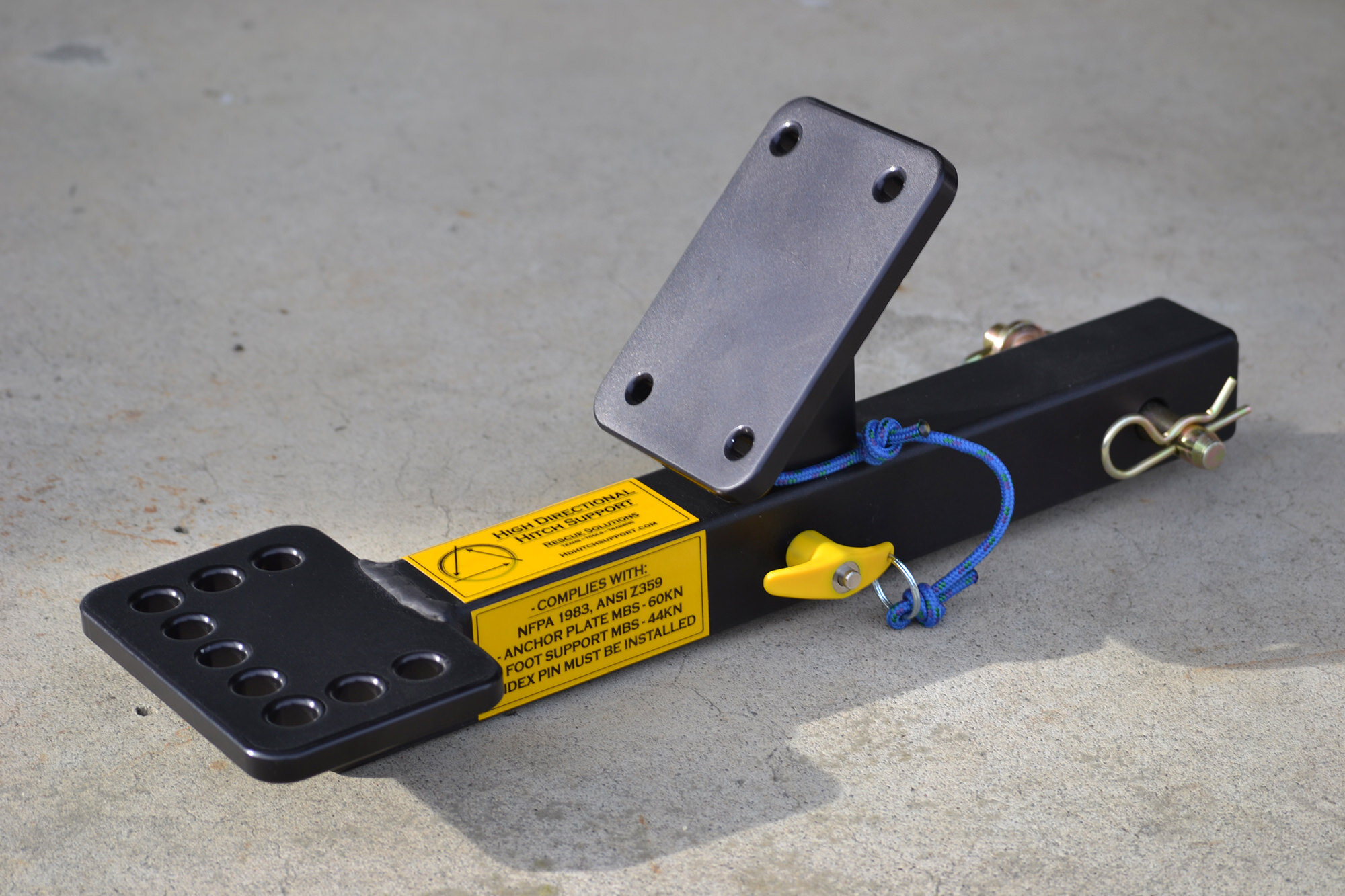

The integrated anchor plate reduces the need for additional equipment and simplifies rigging systems.
Set up
The vehicle hitch receiver to be used with the Hitch Support must be rated for the anticipated load and inspected prior to use. A Class 3 receiver is required as a minimum, with Class 4 or Class 5 preferred.
A grade-5 hitch pin should also be utilized. The host vehicle should be secured, with the transmission in park or in-gear with emergency brake applied, wheels chocked, and ignition key removed or “tagged out”.
Setting up the artificial high directional should be done by a competent rescue technician trained in the proper and safe use of High Directionals. A High Directional flat foot should be left attached to the HD Hitch Support using supplied Stainless-Steel bolts.
Safety
Even though using the HD Hitch Support may be intuitive, training from a competent, professional instructor in Artificial High Directionals is recommended prior to using this device.
A thorough understanding of technical rope systems, loads, force vectors, rope rescue safety factors and associated physics is required to effectively and safely use the HD Hitch Support. Failure to follow the product instructions and safe rescue practices can result in physical damage to equipment & vehicles, failure of the technical rope system, personal injury or even death.
Maintenance & Inspections
Inspect the HD Hitch Support before and after each use for sharp edges, cracks, bends or damaged parts. Do not use if the unit is damaged.
Modifications or repair to the unit can only be made by the manufacturer. Clean the unit of dirt and moisture with soft towel and store in safe and dry location.
In service with…
In service with…
“The High Directional Hitch Support (HDHS) is a valuable addition to the Honolulu Fire Department's equipment cache. The Hitch is carried on each of Department's front-line Rescue apparatus , and as space on the apparatus is at a premium, the HDHS compact size makes for ease of storage, and is easily deployed on any of the Rescue apparatus' hitch locations or to a support vehicle. The unit offers the team leader a quick, easy and safe option when the incident calls for the use of our Vortex unit in close proximity to a vehicle. The built in anchor plate allows our techs multiple options for setting up a clean rope system.”
Peter (Kaiu) Akiona Retired Rescue Captain Honolulu Fire
